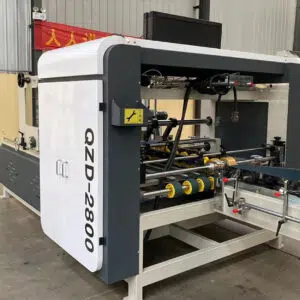

Fully Automatic Corrugated Cardboard Adhesive Nail Machine
Description
Full automatic adhesive nail machine is a kind of packaging machinery which integrates two functions of gluing and nailing, used to complete the sealing process of carton efficiently. It can automatically complete the process of cardboard feeding, gluing or stapling, and shaping, etc. It is suitable for mass production and improves packaging efficiency and quality. It is widely used in the automated production line of corrugated carton, which reduces the labor cost and at the same time ensures the consistency and reliability of packaging.
Technical Data Sheet
| Model | QDJ-3200G (2600 and 3000 available) |
| Max. cardboard size (A+B)*2 (mm) | 3200 |
| Min. cardboard size (A+B)*2 (mm) | 900 |
| Max. carton size A/B (mm) | 910/690 |
| Min. carton size A/B (mm) | 250/200 |
| Cardboard height (C+D+C) (mm) | 350~1100 |
| Swing cap size C (mm) | 25~450 |
| Height range D (mm) | 200~650 |
| Nail tongue width E (mm) | 30~35 |
| Speed (nail/min) | 1300 |
| Nailing speed (m/min) | 80 |
| Gluing speed (m/min) | 120 |
* Size of automatic adhesive nail machine can be customized as per your PO instructions
Main Features
- Fully computerized control automatic single, easy to understand, simple operation, can store 999 nail single
- Bottomless and covered box can also be nailed ( need to specify when ordering )
- 1-3 minutes to adjust the size, simple and fast.
- Nail head power for servo motor, mechanical speed: 1300 -1500 nails / min.
Main Configurations
- The paper feeding department of automatic adhesive nail machine adopts PLC to automatically control Siegelin’s high wear-resistant suction belt, each of which can individually control the size of the air volume to ensure stable adsorption and accurate paper feeding.
- When feeding paper, there is a side tapping device to make the paper feed neatly and smoothly.
- The pre-pressure wheel and forming wheel of the paper supply department are computerized to control the thickness of the cardboard, and the height of the paper support is adjusted electrically.
- The paper feeding motor is controlled by servo motor to ensure stable and accurate nail distance.
- Designed with box shaping function to ensure that there will be no scissors mouth when nailing the box, neat and not crooked.
- The front and rear scissors mouth will not be more than plus or minus 2mm.
- Adopting computerized screen operation, and displaying fault instructions.
- Nail three-layer, five-layer carton (seven-layer need to be declared in advance when ordering).
- Finally, there is automatic counting and stacking quantitative output.
- The automatic adhesive nail machine will stop automatically when it is skewed during normal operation.
- Used for three purposes in one machine, i.e., it can be glued, nailed and nailed at the same time.
Chuang Xin Carton Machinery, is a leading manufacturer and solution provider of carton packing and printing machines. Located in Changsha, the world-renowned capital of packaging materials, CX Machinery was established as part of Carton Machinery and Printing Equipment and is registered to ISO14001 and OHSAS 18001 standards by CQC. We have a team of engineers with more than 10 years of production experience in the carton machinery field, as well as our skillful sales team to provide full support to our customers.
CX Carton Machinery designs, produces and sells high quality carton packaging machinery such as corrugated box plant, 2/3/5/7 ply corrugated board production line, flexo printer slotter die cutter, rotary slotter, rotary die cutter, automatic carton folder gluer. In addition to the production of the above machines, CX Machinery is committed to the flexible customization of some ancillary machines for carton making.
With consistent quality and excellent service since 2009, we have established deep business partnerships with overseas customers in more than 40 countries.
